M7M1 TWINS Mobile Movable interlocking compressed earth block making machine
Description
Parameters
FAQ
Product Introduction:
M7MI super (M7M1 Twins ) hydraulic interlocking block machine is a special equipment for producing interlocking building bricks. Cement, clay, shale powder, fly ash, lime and other materials can be used as raw materials, when curing, the product can be dry lamination without mortar. Cement soil interlocking brick locks each other in front and back, top and bottom 4 sides , so each piece of dry accumulation and locked in place. Dry stack significantly saves time and cost of construction. The machine has the specification of convenient to move and produce bricks at different sites, saves the transporation cost of raw materials. It can be powered by diesel engine or electric motor.

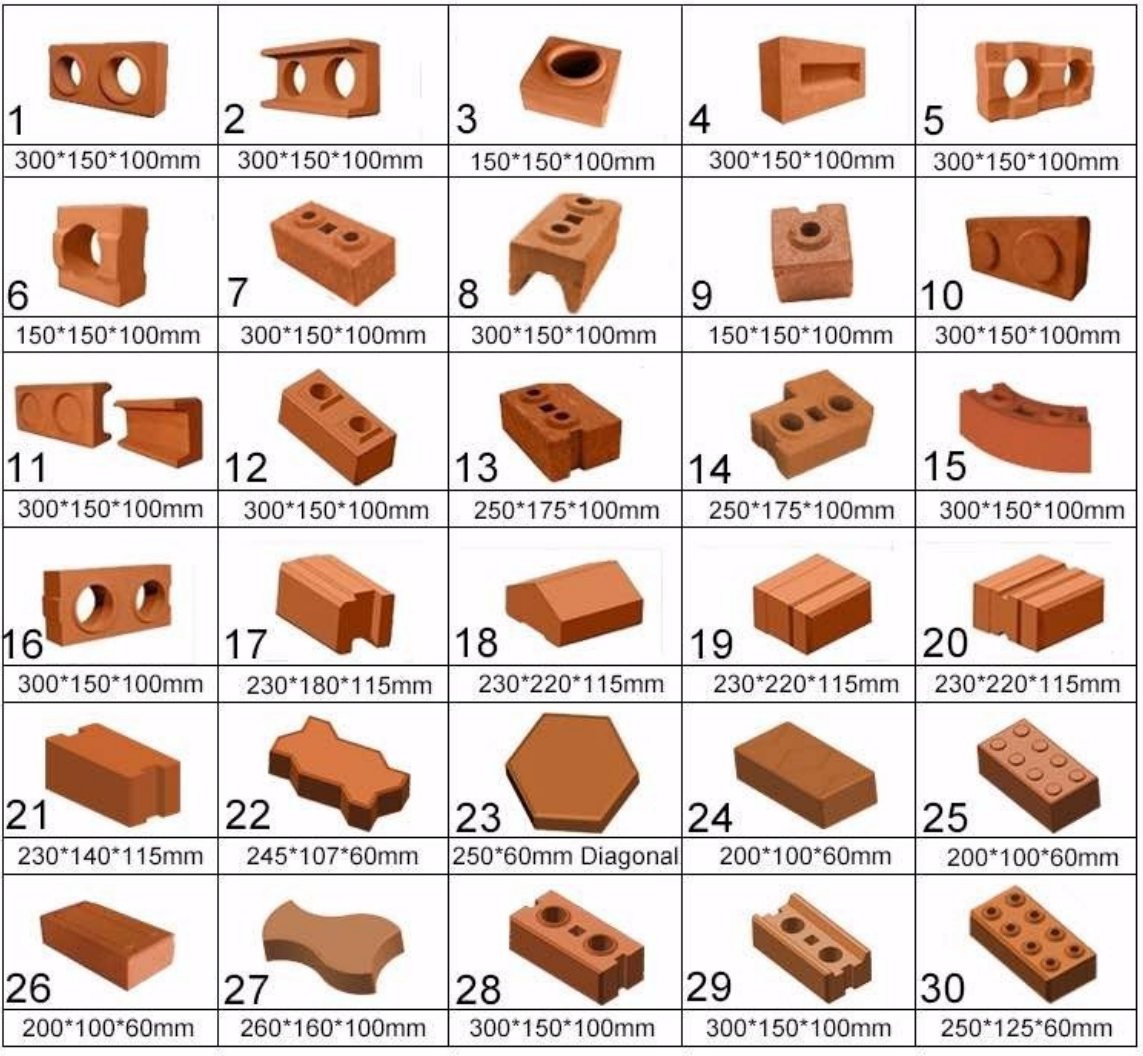

Block sample :
Technical Parameters:
Introduction & specification of M7M1 TWINS
Overall size
2800*1520*1530mm
Features
Mobile, with tow-hitch, tyres and hydraulic mixer for a better quality mix
Power source
Diesel engine (12HP),4 stroke , 1 cylinders
Weight
+/- 770 kg excluding package
Operating staff
+/- 5-6 staff
Moulds
comes with 2 free mould
Raw materials
clay , soil ,mud ,compressed earth ,sand ,cement ,water etc.
Color
As request
Capacity（pcs/h）
400~500
Introduction & specification of M7M1 TWINS PLUS
Overall size
2800*1520*1530mm
Features
Mobile, with tow-hitch, tyres and hydraulic mixer for a better quality mix
Power source
Diesel engine(18HP),4 stroke , 2 cylinders
Weight
+/- 770 kg excluding package
Operating staff
+/- 5-6 staff
Moulds
comes with 2 free mould
Raw materials
clay , soil ,mud ,compressed earth ,sand ,cement ,water etc.
Color
As request
Capacity（pcs/h）
700~750
Related Product:
No.
Model
KW
Pcs/cycle
Capacity(pcs/h)
Pcs/8hours
Price USD
1
LP1-20
6
1
200~250
1600~2000
2700~3000
2
LP2-20
9
2
400~500
3200~4000
3500~4000
3
LPM7M1
6
1
200~250
1600~2000
4500~5500
4
LPM7M1
Twins
9
2
400~500
3200~4000
6000~7000
5
LPM7M1
Twins Plus
13.5
2
700~750
5600~5900
6000~7500
