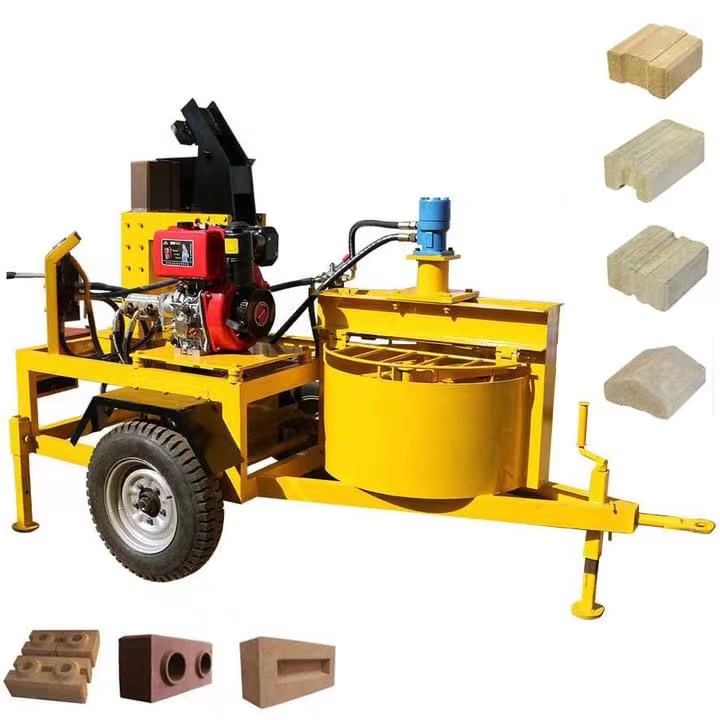

1.M7M1 hydraulic clay block machine is our newest clay and cement brick making machine; 2.Use clay,mud,soil or concrete as materials,you can chose diesel engine or motor.so it is very good for the place where there is no power or electricity; 3.One machine can produce different kinds of interlocking block by changing moulds;
4.It is ideal for small to medium size projects producing around 1500 blocks per day.

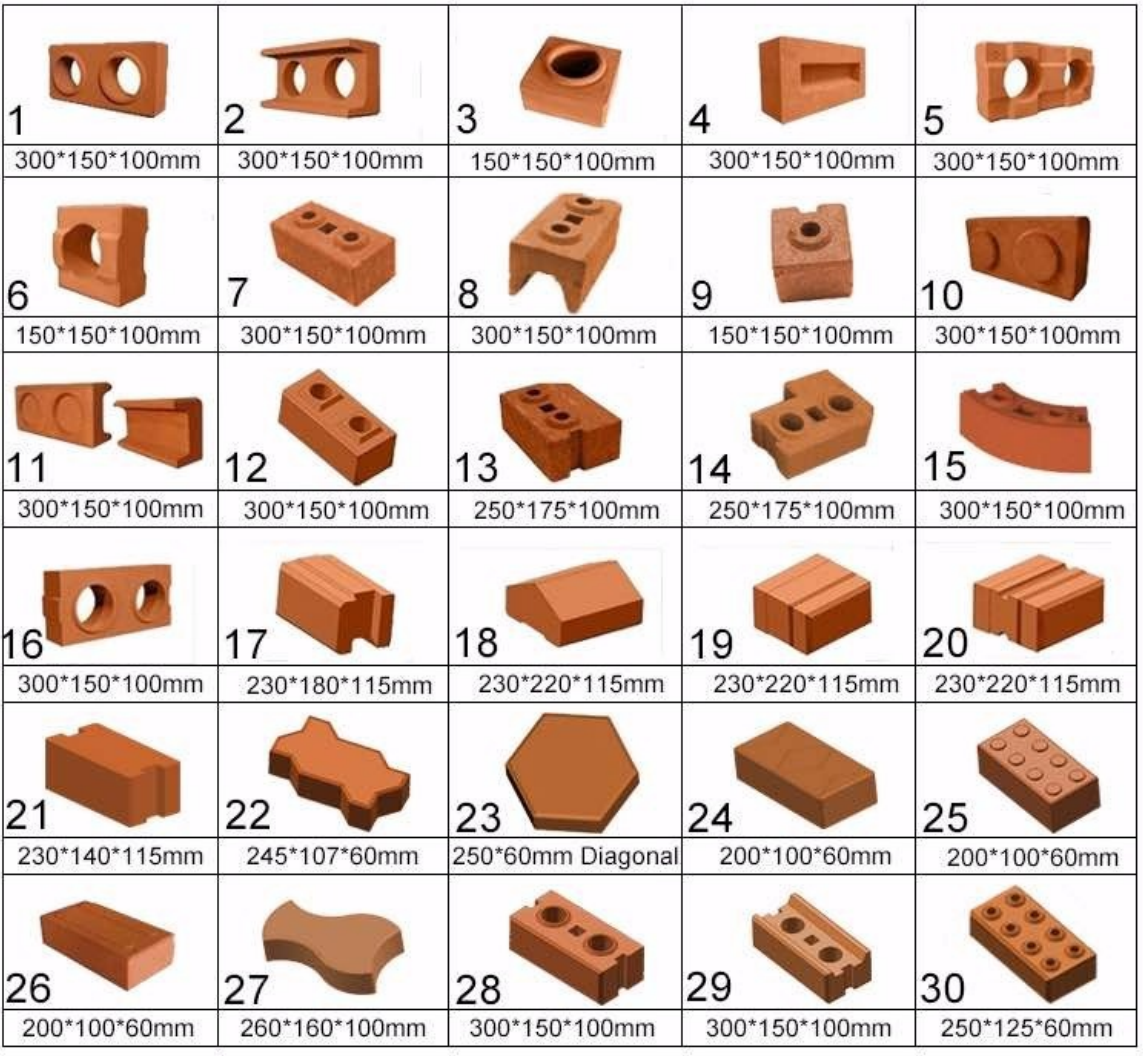

Block Sample:
Technical Parameters:
Introduction & specification of M7M1
Machine Type
M7M1-hydraulic clay block machine
Production
200-250 blocks per hour
Features
Mobile, tow-hitch, tyres and hydraulic pan mixer
Power source

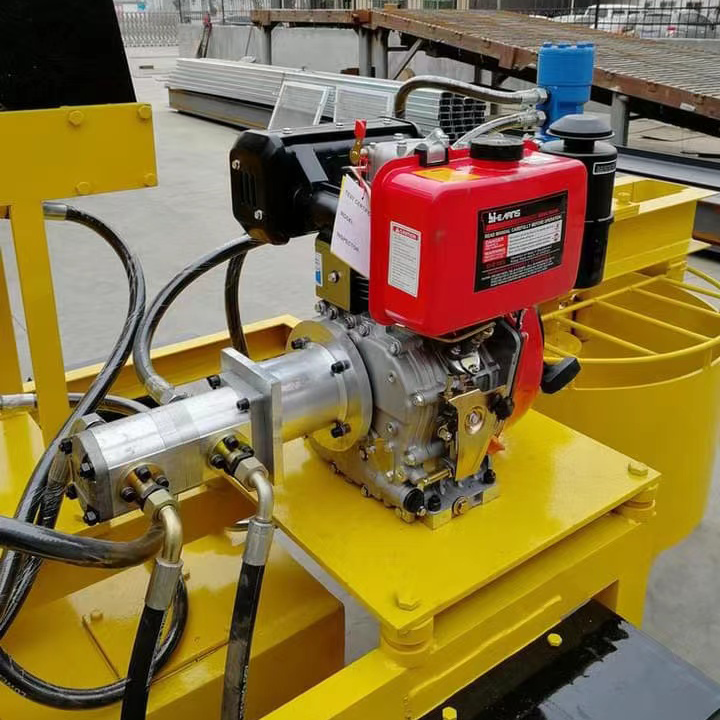

Diesel (electric motor available)
Dimension
2.95 x 1.7 x 1.6m
Weight
1560 kg
Operating staff
7-9 staff
Moulds
Machines come standard with 220mm （interlocking block mould which requires minimal mortar）
Accessories
Optional extra: spares (one year)
Capacity (pcs/h)
200~250
Related Product:
No.
Model
KW
Pcs/cycle
Capacity(pcs/h)
Pcs/8hours
Price USD
1
LP1-20
6
1
200~250
1600~2000
2700~3000
2
LP2-20
9
2
400~500
3200~4000
3500~4000
3
LPM7M1
6
1
200~250
1600~2000
4500~5500
4
LPM7M1
Twins
9
2
400~500
3200~4000
6000~7000
5
LPM7M1
Twins Plus
13.5
2
700~750
5600~5900
6000~7500
